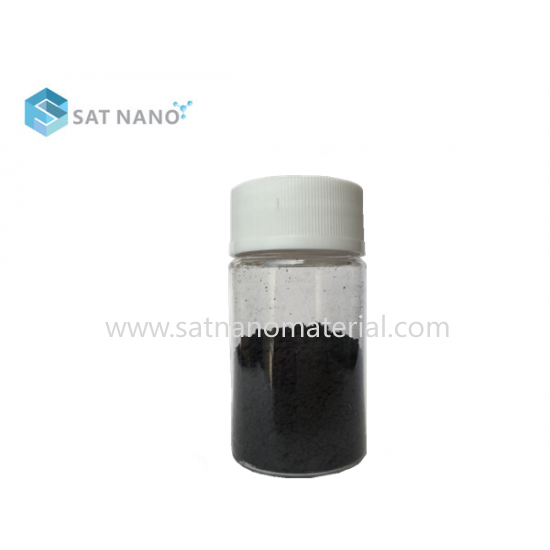

Anti-corrosion enhanced thermal conductive graphene powder

Graphene layer:1-3layer, single layer rate is greater than 80%

Carbon content:>98%

CAS No:1034343-98-0

ENINEC No.:231-955-3
Appearance:black Powder

  • Brand:

    SAT NANO
  • Item NO.:

    SAT-GB1
  • Payment:

    TT, Paypal, WU
  • Product Origin:

    China
  • Color:

    Black Powder
  • Shipping Port:

    Shenzhen, Shanghai
  • Lead Time:

    1-5days
  • Min Order:

    10g
  • Product Details

Specification of conductive graphene powder:

Graphene layer                                    1-3layer, single layer rate is greater than 80%
Carbon content >98%
Rod oxygen content few
Length(D50) 5-8um
Diameter to thickness ratio 9500
Apperance Black grey powder
Bulk density 0.01-0.02g/ml

Fe               <=150ppm
Ni <=10ppm
Zn <=10ppm
Co <=10ppm
Cr <=10ppm
Cu <=10ppm

Note: We can supply different size products of conductive graphene powder according to client's requirements.

1.It is made by mechanical stripping method, and has few oxygen functional groups on the surface, and has good electrical and thermal conductivity.

2.It has an extremely large diameter-thickness ratio and a small powder bulk density.

3.It has a wide range of uses and can improve the conductivity, heat conduction, heat preservation, light/heat stability, strength and wear resistance of materials.


Application of conductive graphene powder:

1.Applied to battery systems
2.Applied to other systems requiring high metal impurities

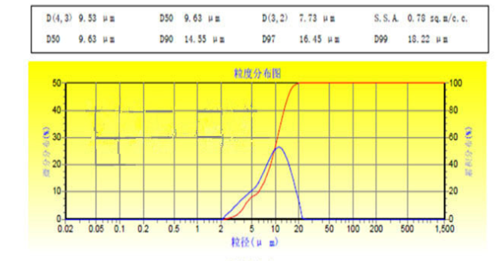

SEM & XRD of conductive graphene powder:

conductive graphene powderconductive graphene powder


Storage conditions:
Conductive graphene powder should be sealed and stored in a dry and cool environment. It should not be exposed to the air for a long time, to prevent agglomeration due to moisture, affecting the dispersion performance and use effect, and should avoid heavy pressure, do not contact with oxidant, and transport according to ordinary goods.
